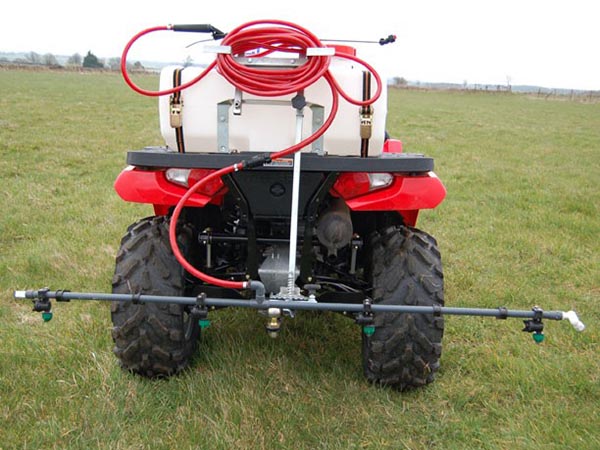

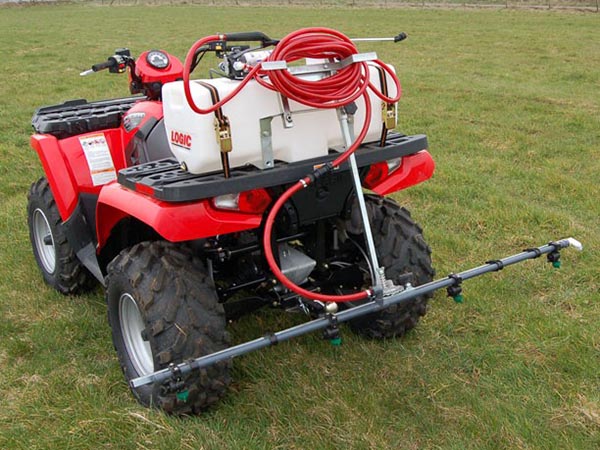

The Logic 60 litre on-board sprayer range has been designed to fit onto the rear carrier rack of an ATV. Each nozzle requires an output of between 1.0 and 1.6 litres per minute at a spraying pressure of between 2 and 3 bars.
The 60-litre tank has two pump options that allow you to utilise the following booms:
OBS640S model - 9.0 litre per minute pump @ 3 bar - boom options OBS101 1.5metre boom/3 nozzles - OBS102 2.0m boom/4 nozzles or OBS104 3.0metre/6 nozzles
OBS690S model - 9.0 litre per minute pump complete with full pressure control system @ 3 bar - boom options as above.
Please note, all Logic booms come with one end hedgerow nozzle as standard. A hand-lance with up to 15metres of hose is available fitted on a hose reel or on a wrap around bracket. A 60 litre front tank can be added to either of the above models.
Speak to a us for more options
60 litre tank capacity
Filter basket incorporated into top filling lid
9 litre re-circulation pump (OBS640S) or 9 litre (OBS690S) pump complete with full pressure control system
Higher output electric or petrol pump - speak to Logic for advice
ATV wiring harness with switch and in-line fuse
Boom/Hose reel bracket
Boom widths 1.5 - 3metres, c/w hedgerow nozzle
OBS107 single broadcast nozzle

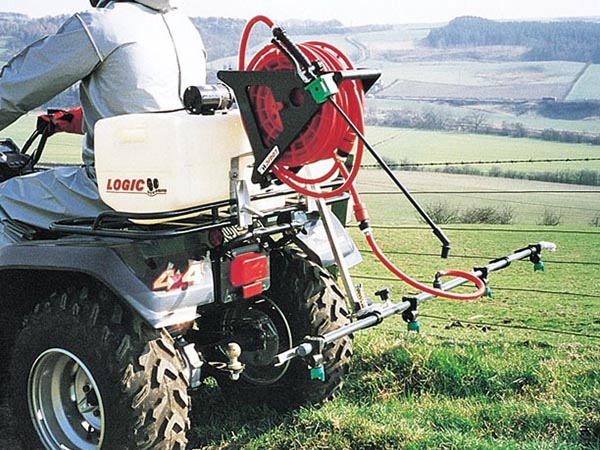

Hand lance hose reel options (10/15metre)
OBS116 'Y' piece with 2 taps/outlets
60 litre front tank
15 litre hand-wash tank
