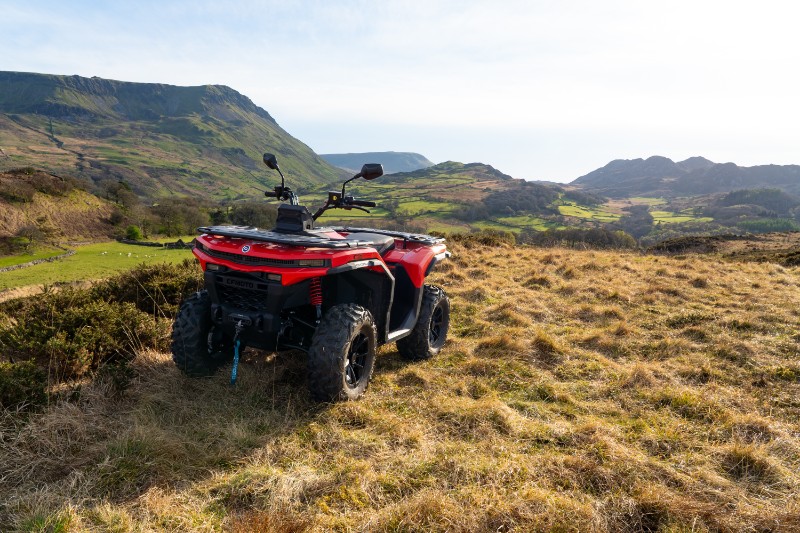

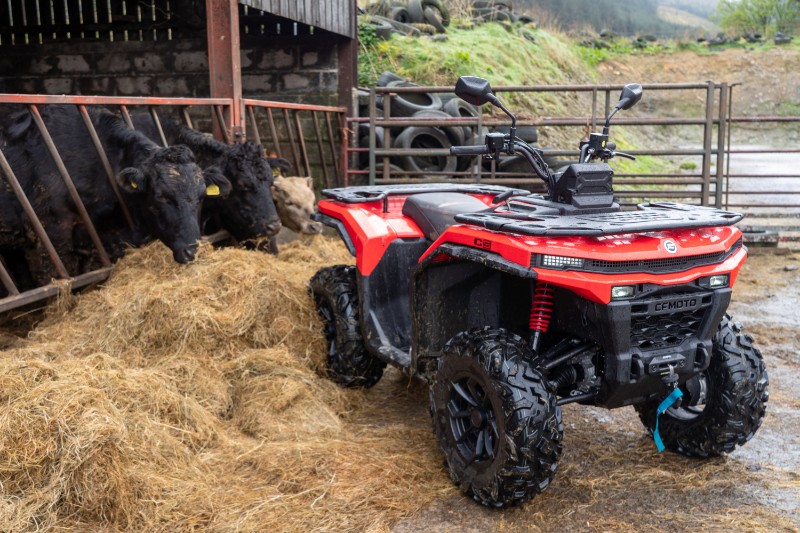

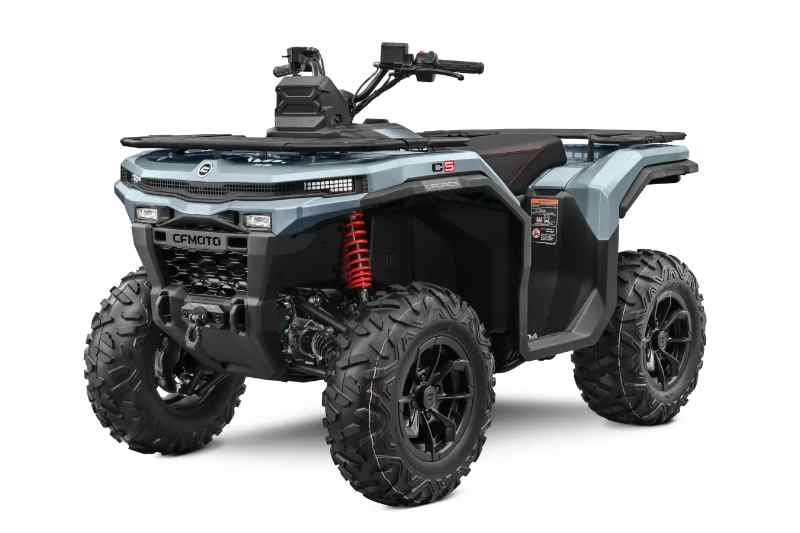

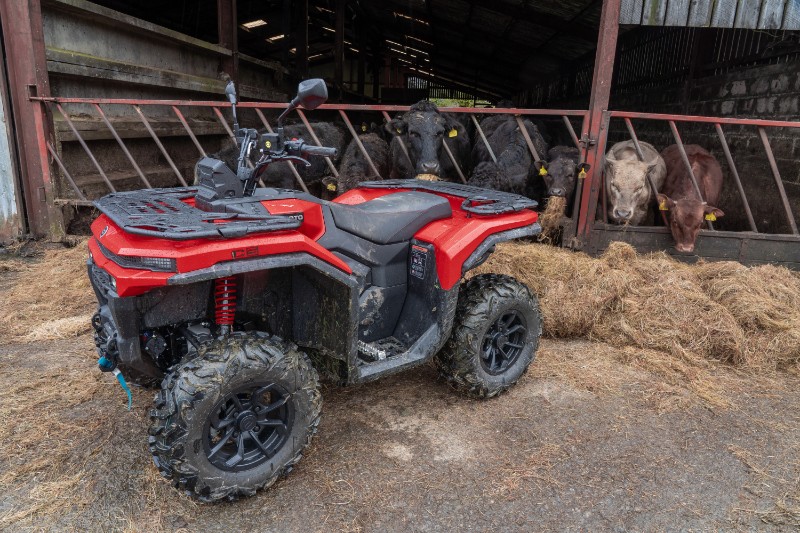

CFORCE C5

DETAILS

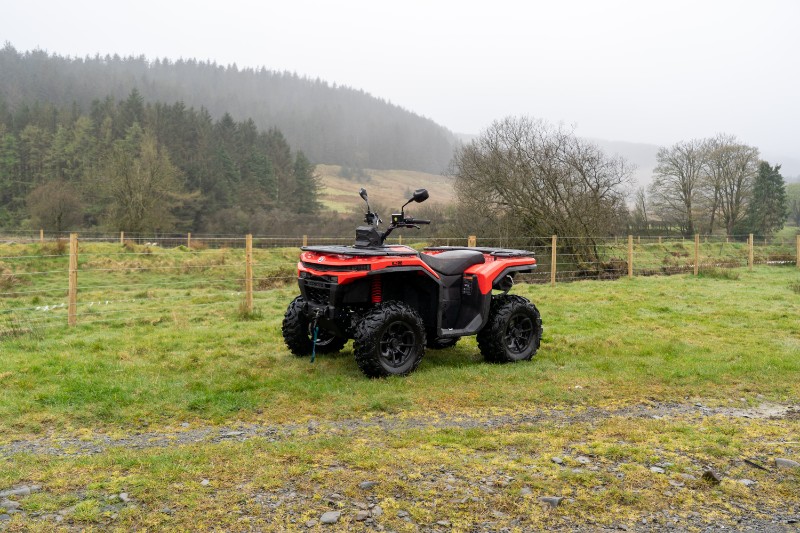

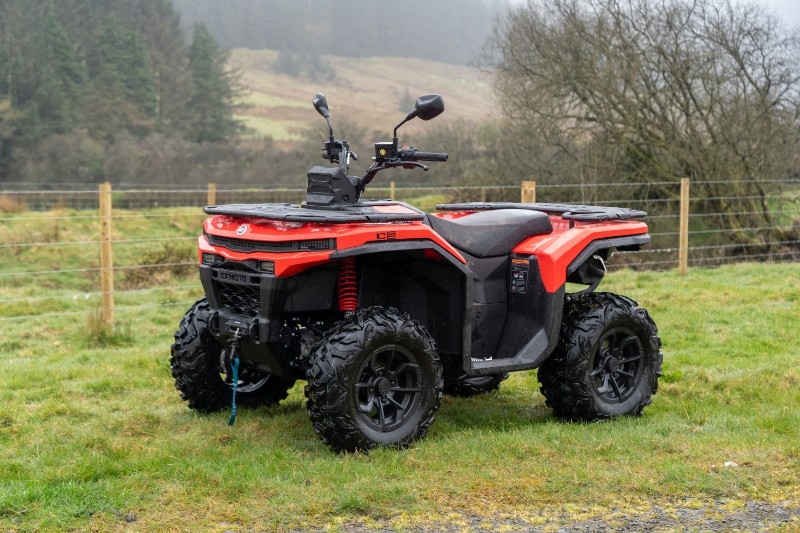

The CFORCE C5 represents the next-generation midsize ATV, purpose-built for riders seeking practical capability, everyday comfort, and user-friendly operation. Developed on the all-new 192 engine platform, the vehicles combine a lightweight chassis with a responsive single-cylinder DOHC engine and a smooth, efficient CVT transmission. Featuring stronger low-speed performance, minimised vibration, and improved thermal comfort, the C5 provides a well-balanced and reliable solution for daily work, property upkeep, and weekend rides.

Colour Options

KEY FEATURES

ENGINE

✔ Engine Type: Single cylinder,4-stroke, liquid-cooled,DOHC
✔ Displacement: 498.6cc
✔ Maximum Power: 39HP
✔ Maximum Torque: 43.5Nm
✔ Fuel Supply: Bosch EFI
✔ Transmission: CVT

CHASSIS

✔ Drive: 2WD/4WD/Front differential lock
✔ Brake: Front/Rear:210mm disc brakes with hydraulic caliper
✔ Suspension:
Front: Arched double A-arm independent suspension,210mm
Rear: Double A-arm independent suspension,235mm
✔ Shock Absorber: Spiral spring oil shock absorber
✔ Rim: 12-inch cast aluminum

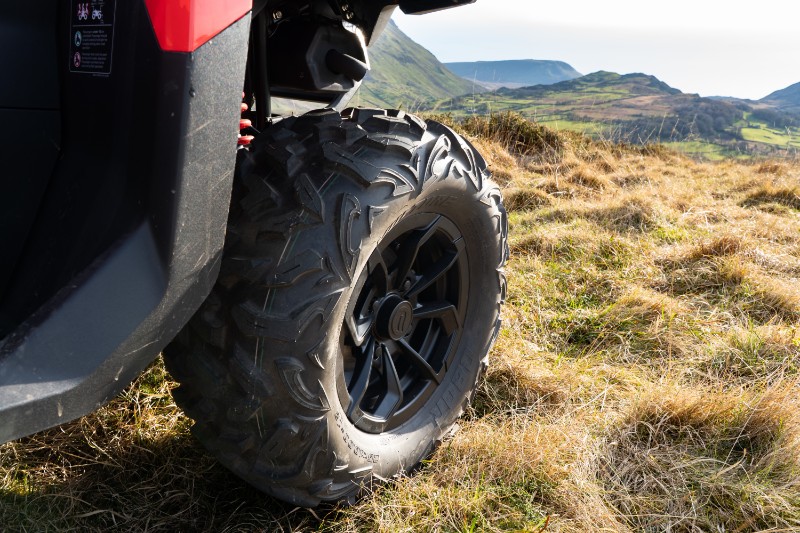

✔ Tyre:
Front: 24×8.00-12, optional 25×8.00-12
Rear: 24×10.00-12, optional 25×10.00-12

DIMENSIONS

✔ Length x Width x Height: 2165×1175×1265mm
✔ Wheelbase: 1290mm
✔ Minimum Ground Clearance: 275mm
✔ Curb Weight: 373kg
✔ Payload Capacity: 270kg
✔ Fuel Capacity: 17L

All-new engine

Driven by the 192R DOHC engine, the CFORCE C5 offers class-leading performance with smooth power delivery and responsive acceleration, achieving a strong balance between work and recreation. Lower internal resistance, reduced weight, enhanced thermal management, and dependable cold-start performance contribute to efficiency, comfort, and long-lasting durability in all conditions. With 4.3S* 0-60km/h acceleration, 39HP maximum power and 43.5Nm maximum torque. ** Data obtained under specific test conditions; actual results may vary under real-world operating environments.

High-efficiency CVT tuned for ATV

Paired with a precisely calibrated, high-efficiency CVT transmission optimised for the 192 engine platform, the C5 delivers smooth take off and responsive power in both work and recreational scenarios. The engine braking system enhances control and stability, allowing for more confident handling over rough terrain.

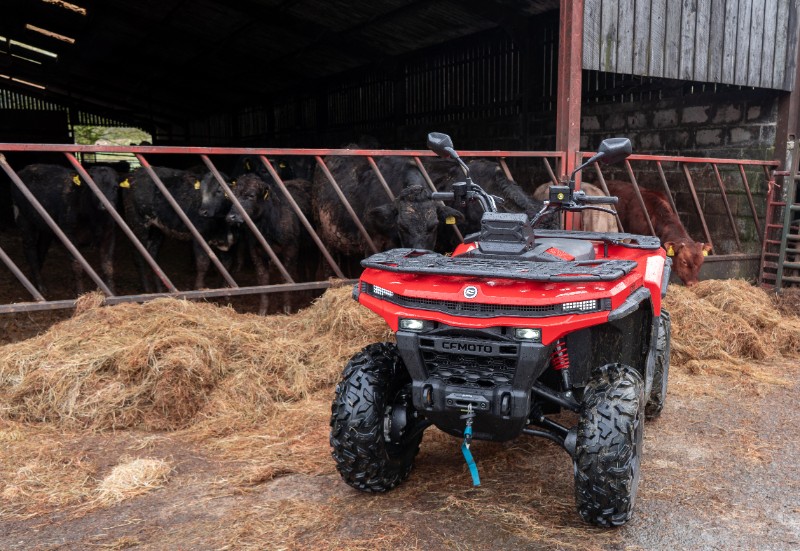

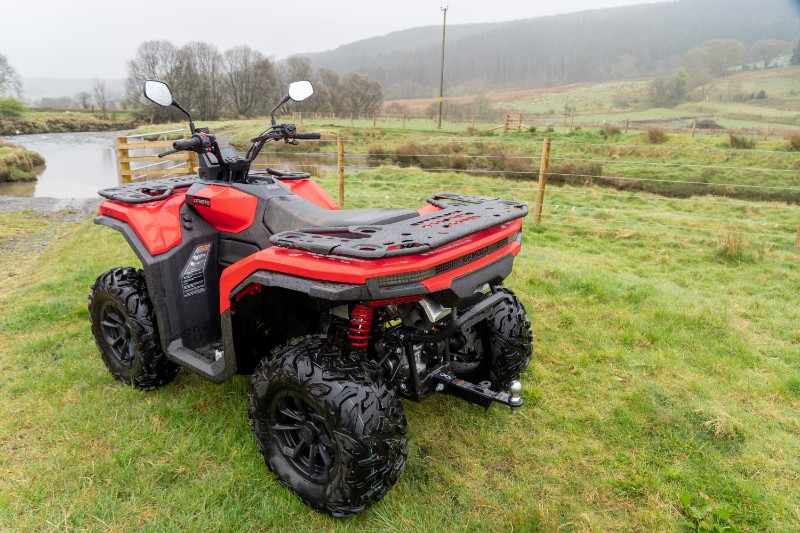

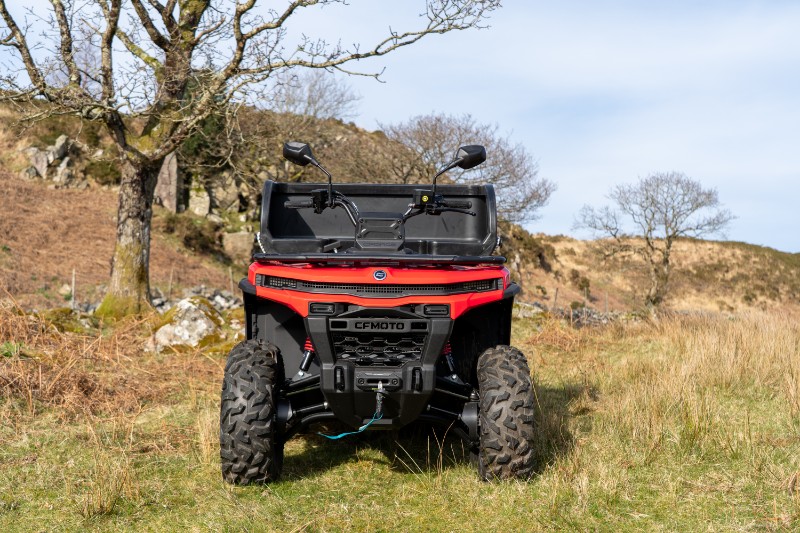

Load and towing capability

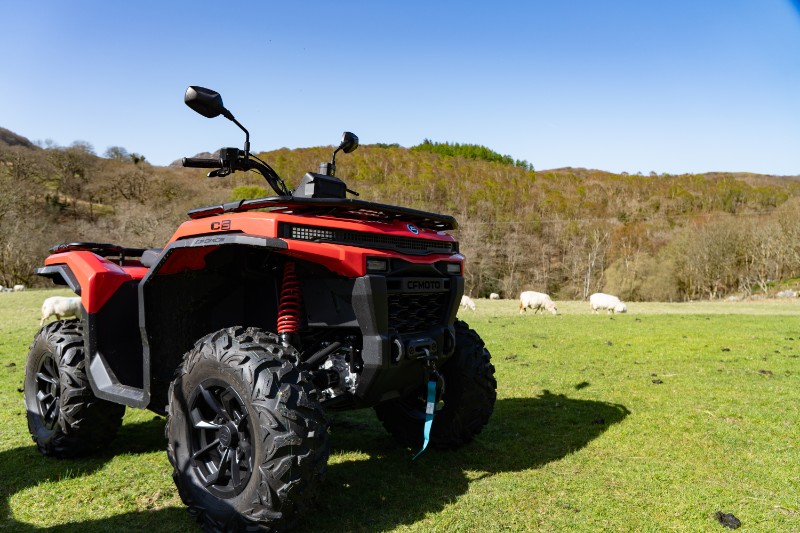

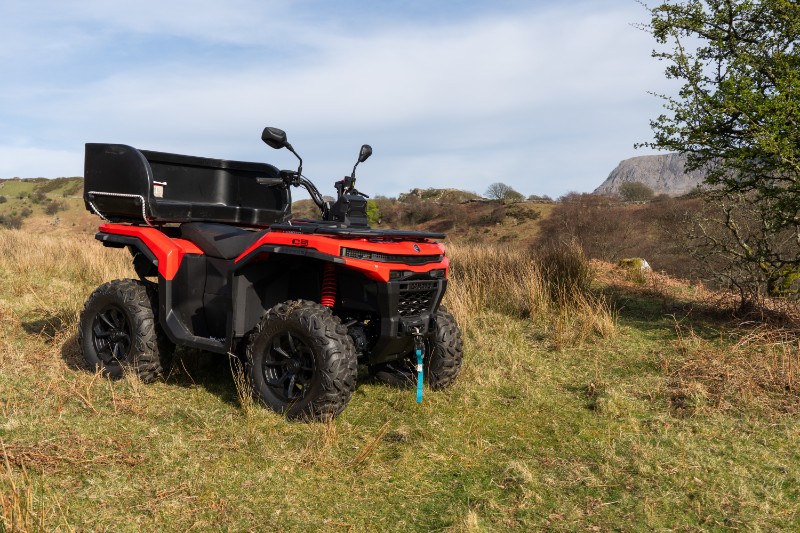

The C5 quad bike delivers robust load and towing capability, supported by reinforced steel racks for secure cargo carrying. A high-strength tow hook enables reliable towing performance, while the winch adds versatility for hauling, recovery, and demanding operations across a range of challenging conditions.

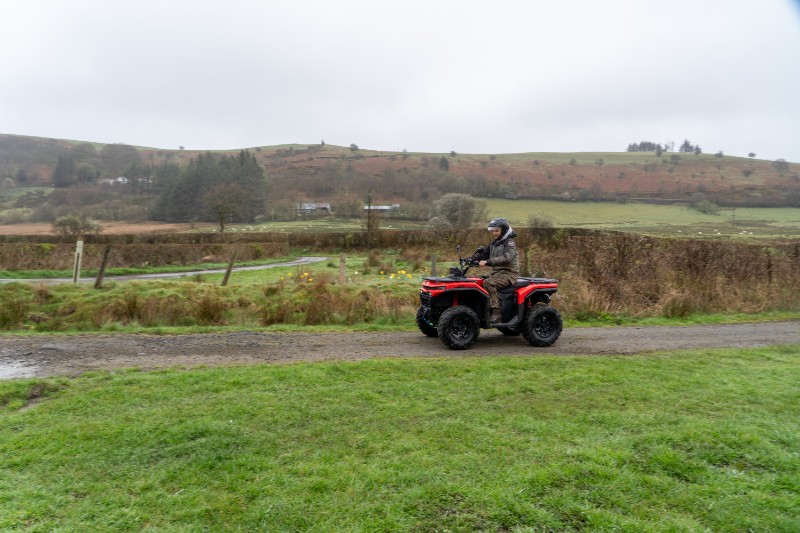

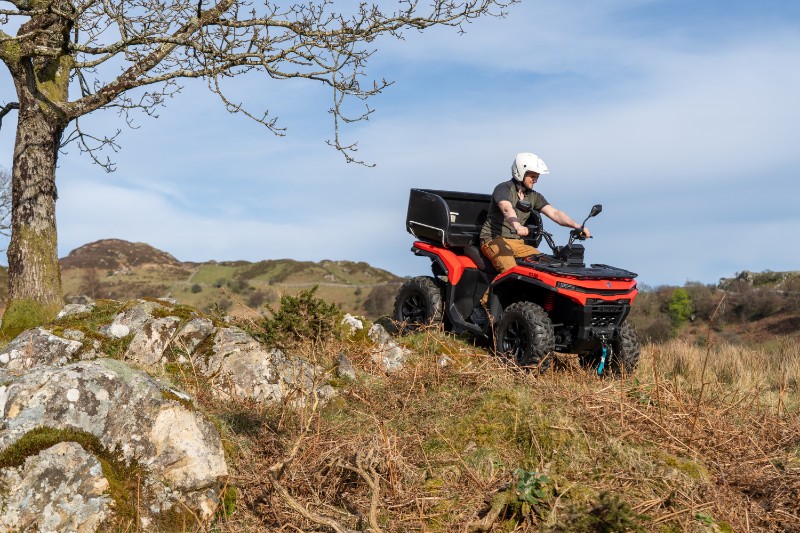

Driving comfort

An optimised ergonomic riding position, slimmer leg-grip, and a thicker, more supportive seat cushion greatly enhance overall comfort. Refined handlebar controls and smaller-diameter grips help reduce fatigue, while dual balance shafts effectively limit vibration. With improved suspension travel and updated tuning, it delivers a smoother, more stable ride across a variety of terrains. 33% smaller leg-grip width, average 8.2mm increased seat cushion thickness, average 5°C lower perceived temperature in the leg area.

Functionality and expandability

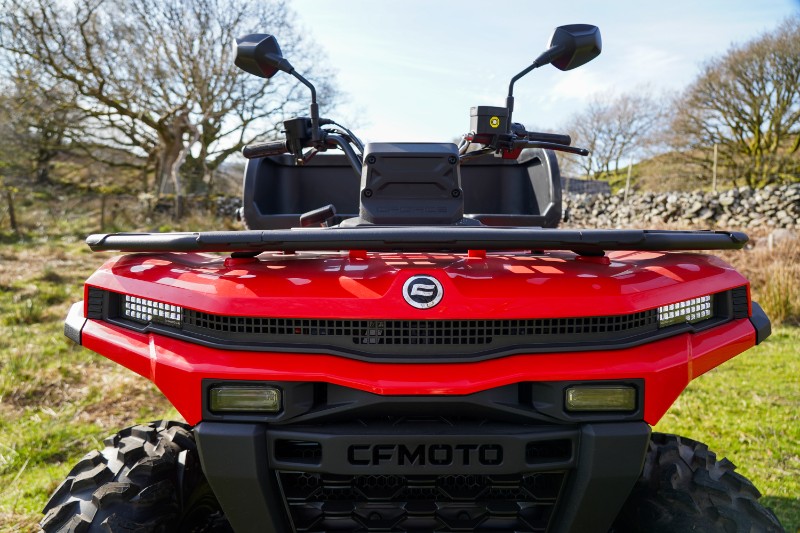

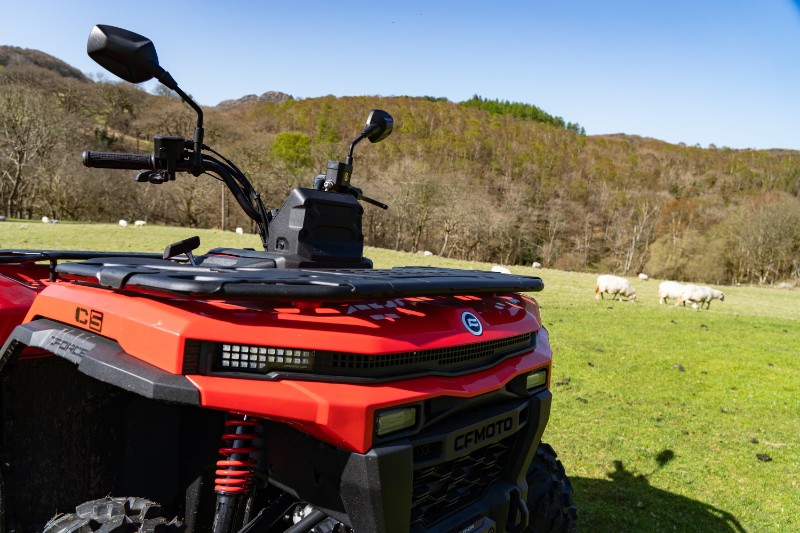

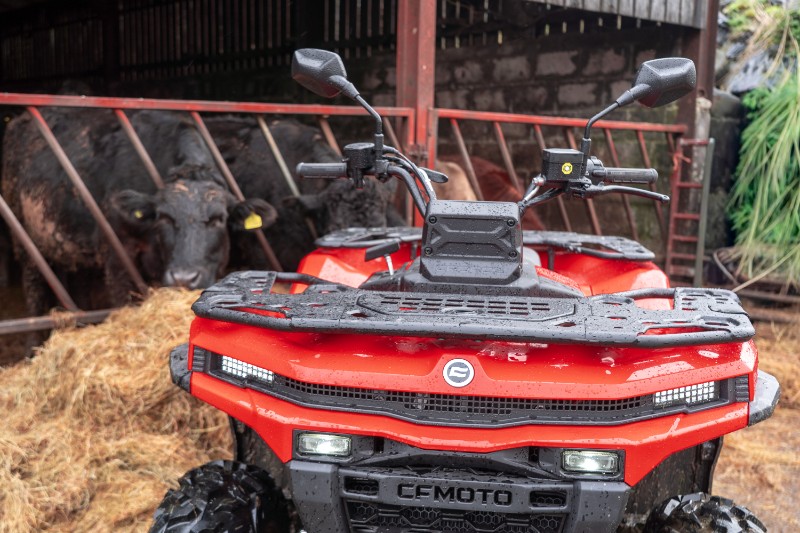

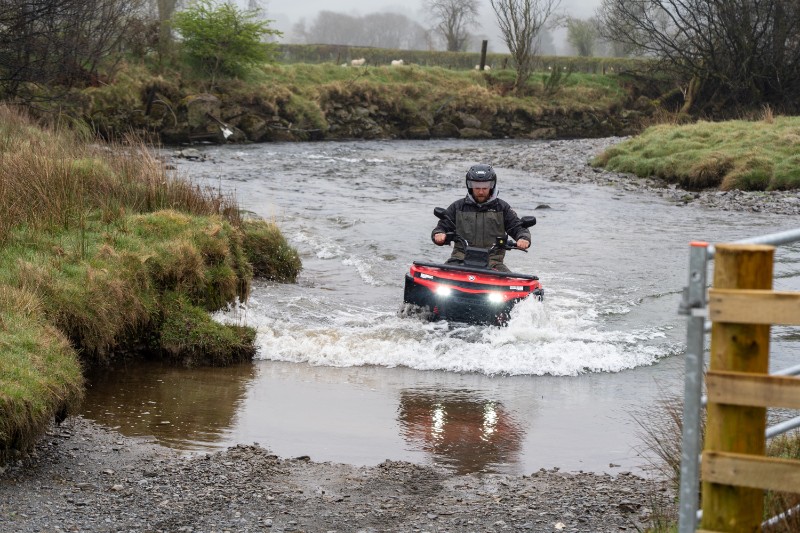

The full LED lighting system, including integrated position/turn signals, combination headlights, and an industry-first reversing light, provides powerful and consistent illumination, thereby improving visibility and safety. Multiple rack tie-down points, CF-Connect compatibility, and accessory connectors, deliver flexible, user-friendly functionality for everyday use.

Daily convenience

Built for daily practicality, with long service intervals, easy-access maintenance, and improved efficiency. Smart storage, a clear 5.9-inch LCD display, and multiple charging options enhance convenience, delivering comfort, reliability, and effortless usability.

Heated grips

Factory-fitted heated grips and thumb throttle keep your hands warm and comfortable in cold weather, helping to reduce fatigue and maintain better control during long days at work or on the trail.
