CFORCE C4

DETAILS

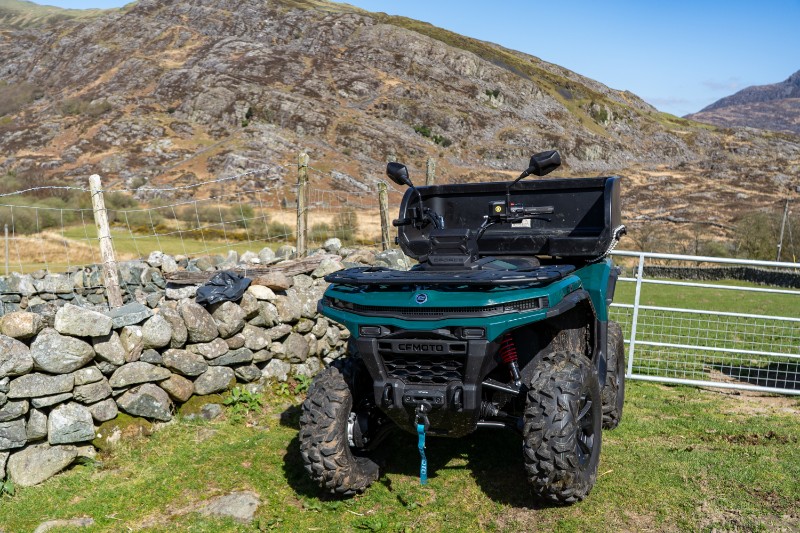

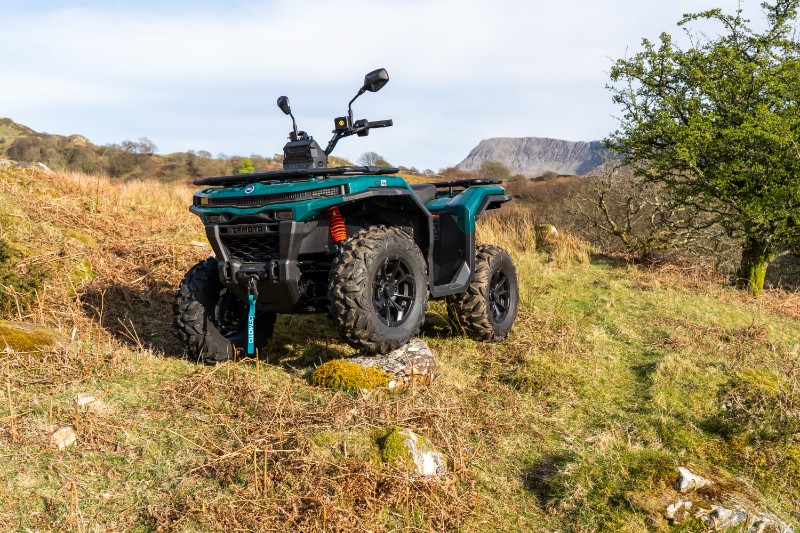

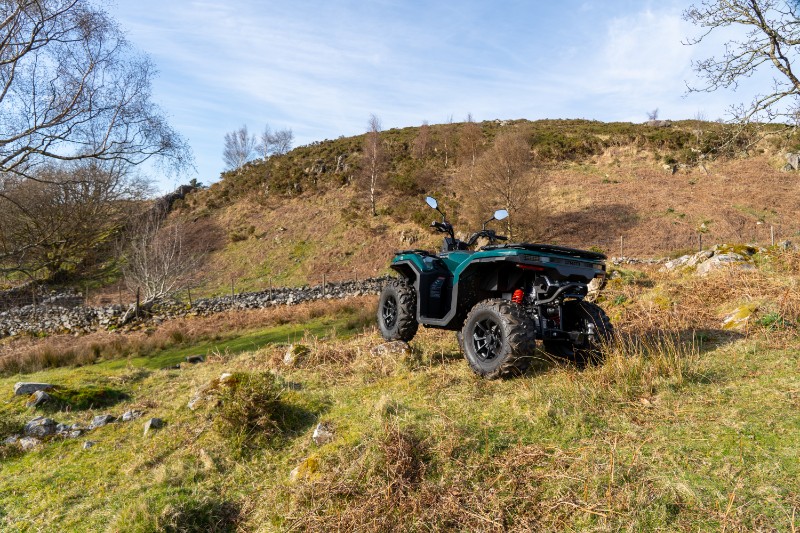

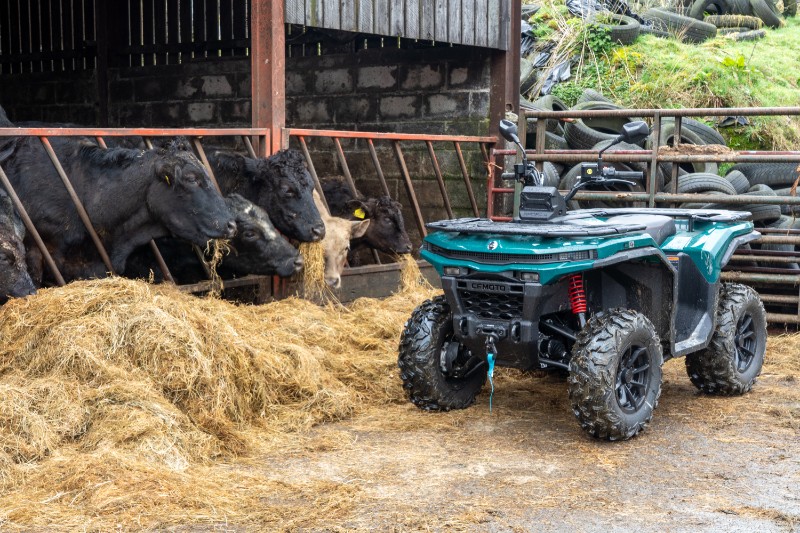

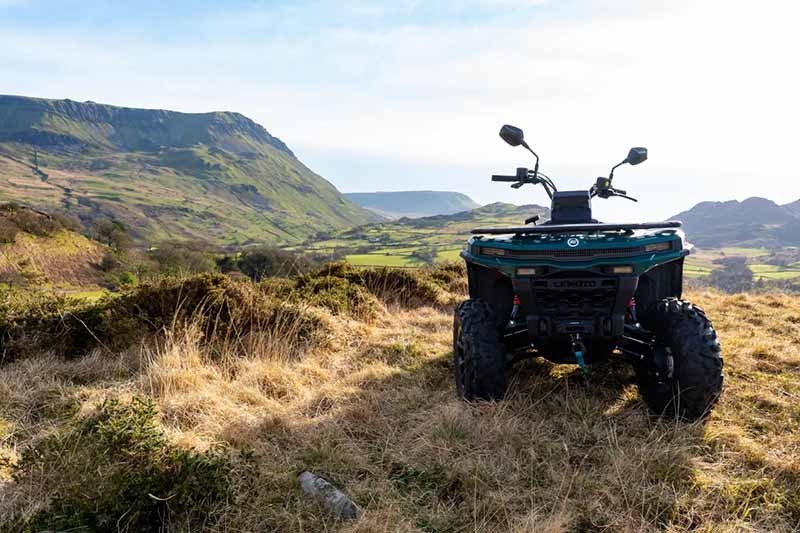

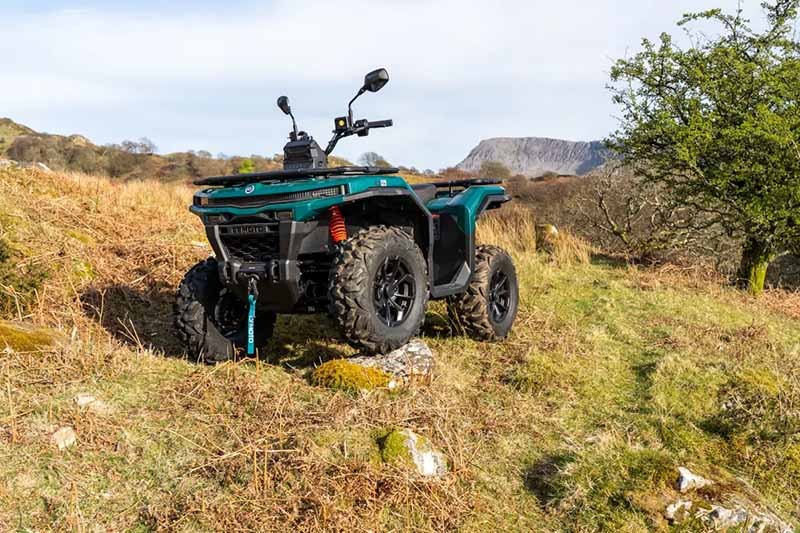

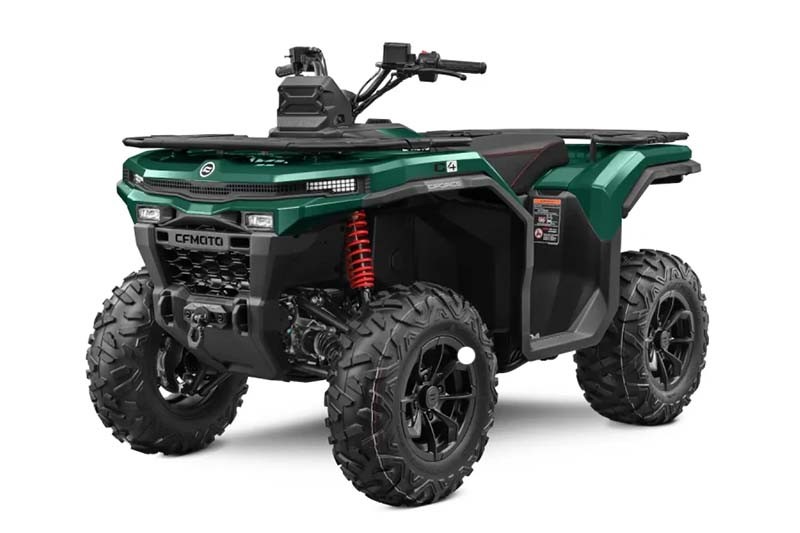

The CFORCE C4 is a new-generation midsize ATV designed for riders who value practical capability, everyday comfort, and ease of use. Built around the all-new 192 engine platform, it combines a lightweight chassis with a responsive single-cylinder DOHC engine and a smooth, efficient CVT transmission. With enhanced low-speed performance, reduced vibration, and improved thermal comfort, the C4 delivers a balanced and dependable solution for daily tasks, property maintenance, and weekend driving.

Colour Options

KEY FEATURES

ENGINE

✔ Engine Type: Single cylinder,4-stroke, liquid-cooled,DOHC
✔ Displacement: 408.8cc
✔ Maximum Power: 33HP
✔ Maximum Torque: 34.5Nm
✔ Fuel Supply: Bosch EFI
✔ Transmission: CVT

CHASSIS

✔ Drive: 2WD/4WD/Front differential lock
✔ Brake: Front/Rear:210mm disc brakes with hydraulic caliper
✔ Suspension:
Front: Arched double A-arm independent suspension,210mm
Rear: Double A-arm independent suspension,235mm
✔ Shock Absorber: Spiral spring oil shock absorber
✔ Rim: 12-inch cast aluminum
✔ Tyre:
Front: 24×8.00-12, optional 25×8.00-12
Rear: 24×10.00-12, optional 25×10.00-12

DIMENSIONS

✔ Length x Width x Height: 2165×1175×1265mm
✔ Wheelbase: 1290mm
✔ Minimum Ground Clearance: 260mm
✔ Curb Weight: 355kg
✔ Payload Capacity: 270kg
✔ Fuel Capacity: 17L

All-new engine

Powered by the 192Q DOHC engine, the CFORCE C4 delivers class-leading performance with smooth power delivery and responsive acceleration, balancing both work and leisure. Reduced internal resistance, lighter weight, improved heat management, and reliable cold-start capability ensure efficiency, comfort, and durability in all conditions. With 33HP maximum power, 34.5Nm maximum torque and 5.9S 0-60km/h acceleration. **Data obtained under specific test conditions; actual results may vary under real-world operating environments.

High-efficiency CVT tuned for ATV

With its precisely tuned, high-efficiency CVT transmission perfectly matched to the 192 engine platform, the C4 offers a smooth start and responsive power delivery whether for work or leisure. Engine braking systems enable smoother and more controllable handling on rough terrain.

Load and towing capability

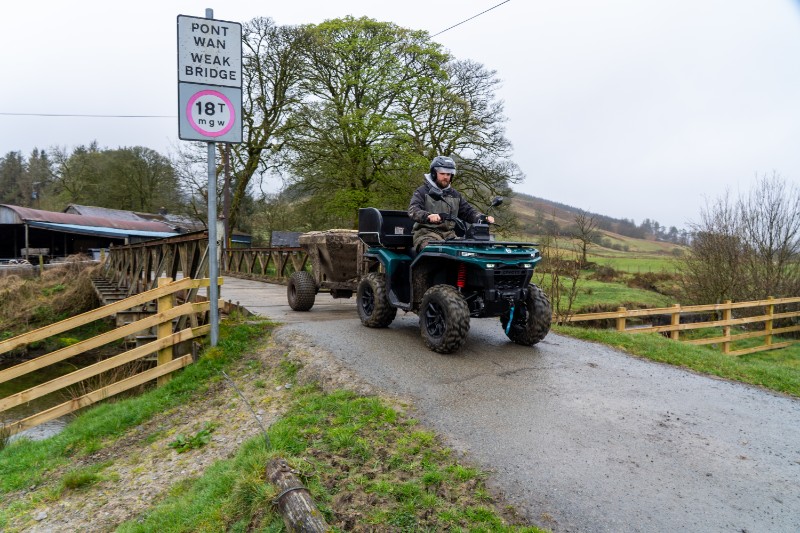

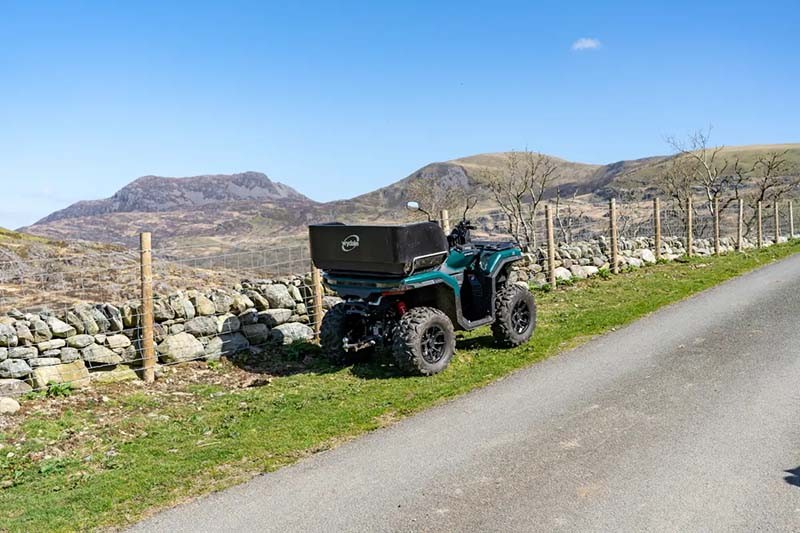

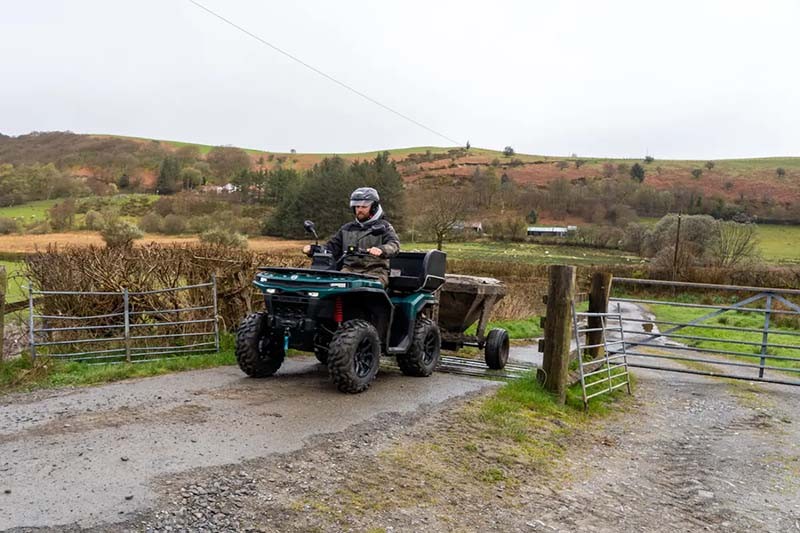

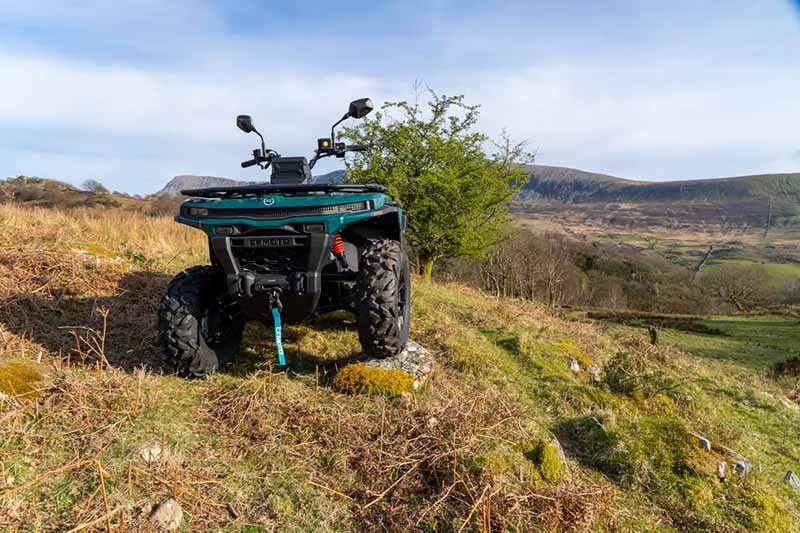

The C4 quad bike offers strong load and towing capability, with reinforced steel racks designed for secure cargo transport. A high-strength tow hook provides towing capability, while the winch enhances utility for towing, rescue, and high-intensity operations under various complex conditions.

Driving comfort

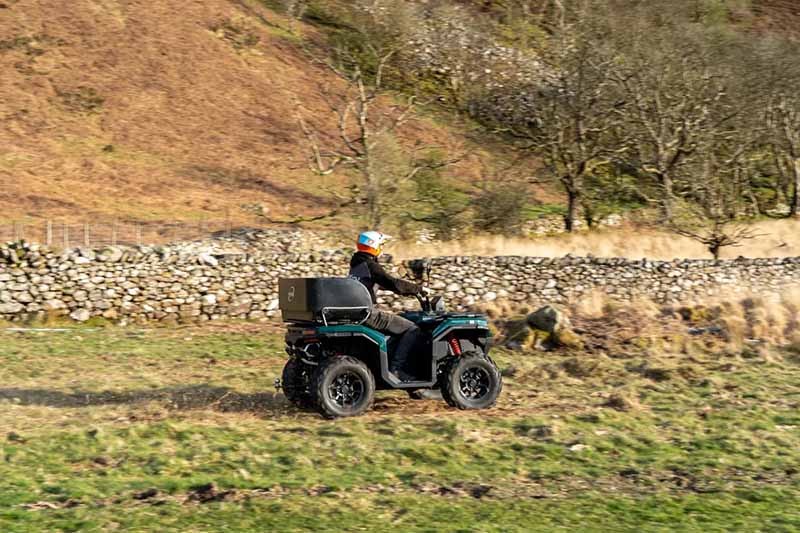

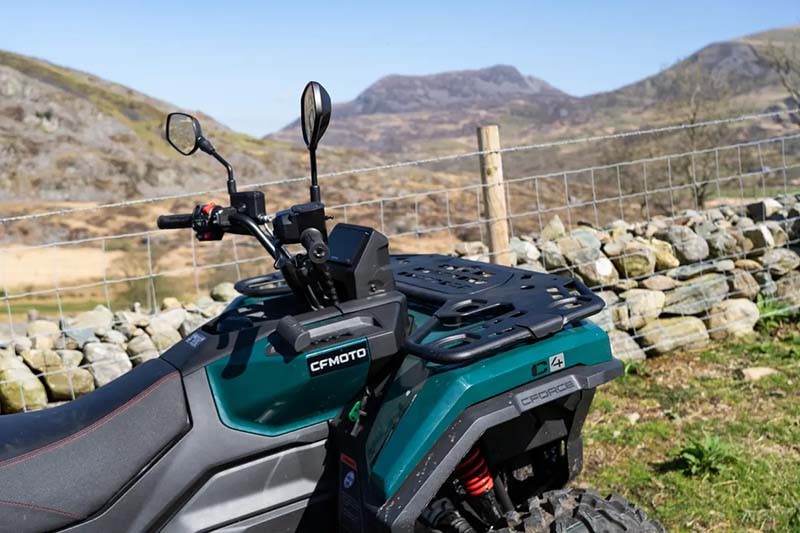

The ergonomic posture, narrower leg-grip, and thicker, more supportive seat cushion significantly improve driving comfort. Optimised handlebar switches and smaller grips ease fatigue, while dual balance shafts minimise vibration. Improved suspension travel and tuning ensure a smoother and more stable ride on various terrains. 33% smaller leg-grip width, average 8.2mm increased seat cushion thickness, average 5°C lower perceived temperature in the leg area.

Functionality and expandability

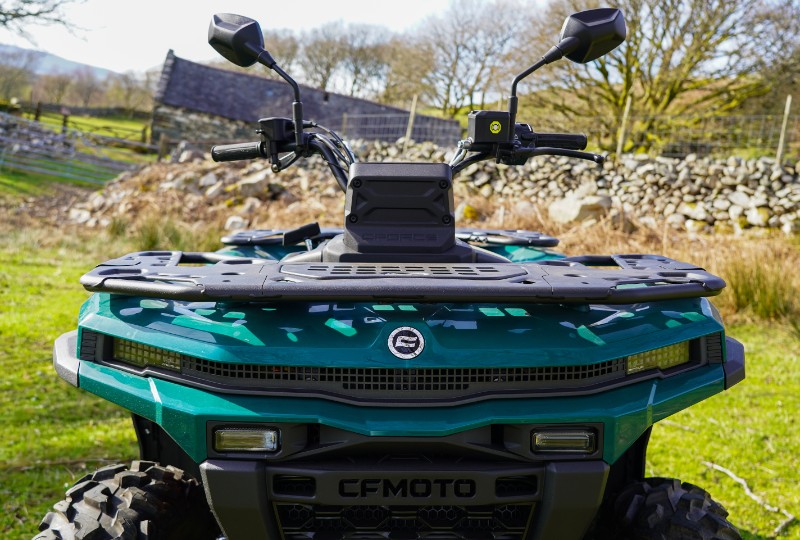

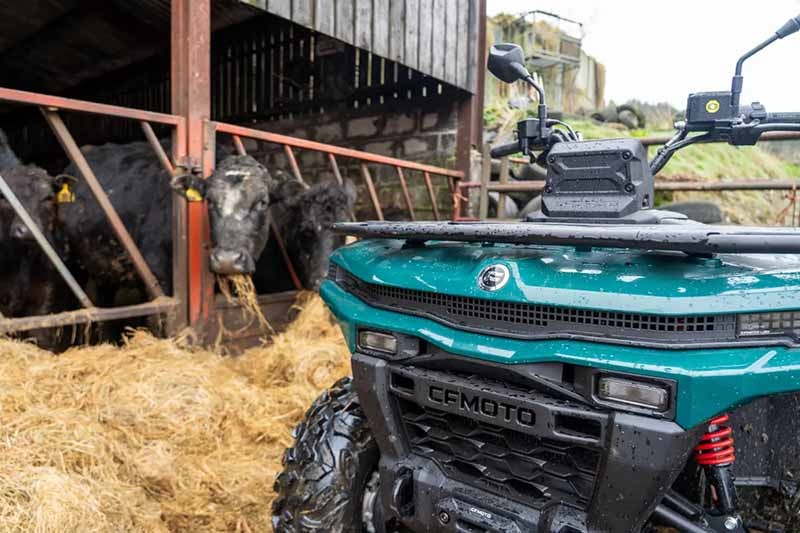

The full LED lighting system, including integrated position/turn signals, combination headlights, and an industry-first reversing light, provides powerful and consistent illumination, thereby improving visibility and safety. Multiple rack tie-down points, CF-Connect compatibility, and accessory connectors, deliver flexible, user-friendly functionality for everyday use.

Daily convenience

Built for daily practicality, with long service intervals, easy-access maintenance, and improved efficiency. Smart storage, a clear 5.9-inch LCD display, and multiple charging options enhance convenience, delivering comfort, reliability, and effortless usability.
